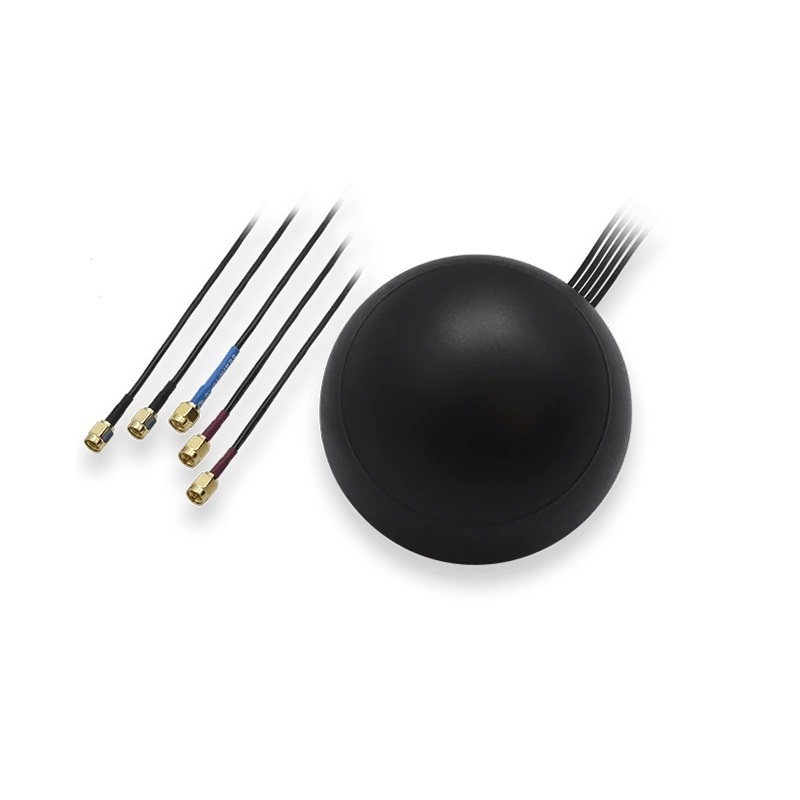

Teltonika Combo MIMO Mobile/GNSS/WiFi Roof SMA Antenna GNSS Antenna Frequency Range: 1575.42-1610 MHz Polarization RHCP Impedance 50 Ω LNA Gain 28±2 dB LNA Noise Figure < 1.5 dB Supply Voltage 3-5 VDC Current Consumption < 15 mA LNA V.S.W.R <2.0 Connector SMA Male LTE MIMO Antenna Frequency Range: 698-960/1710-2690 MHz Polarization Linear Gain 3 dBi V.S.W.R: <3.0 Impedance: 50 Ω Connector: 2x SMA Male WiFi MIMO Antenna Frequency Range: 2400-2483.5/4900-5825 MHz Polarization Linear Gain 2 dBi V.S.W.R: <2.5 Impedance: 50 Ω Connector: 2x RP SMA Male Mechanical/Environmental Mounting Method: Screw Radome Ingress Protection rating: IP67 Radome Material: ABS Weight: <550g Housing Dimensions: Ø 110x55 mm Cable: 5x RG174, 3000 mm RoHS Compliant: ✔

(PR1KCO28)

24
SKU PR1KCO28
Barcode # 003R-00253
Brand Teltonika
Assembled Length 122.000m
Assembled Height 132.000m
Assembled Width 0.580m
