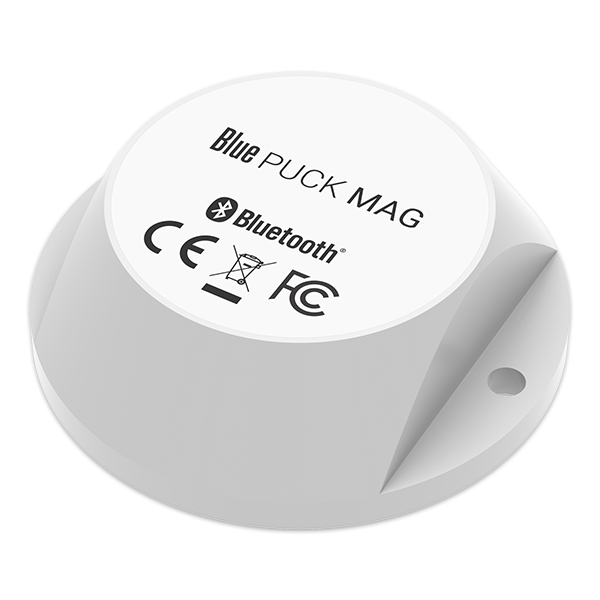

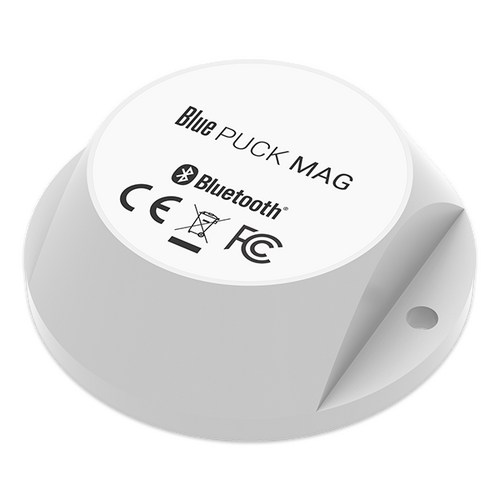

The Teltonika BLUE PUCK MAG is a medium form factor device which allows the monitoring of the open/closed status of doors, windows and other points of entry, via magnetic sensors. In combination with sensor itself it is necessary to use an additional magnet. The sensor can send information when the additional magnet is attached/detached. Bluetooth magnet sensors are small signal transmitters with configurable signal strength and data send intervals. The sensor uses advanced Bluetooth 4.0 LE technology to acheive long distance data communications and can work from a single battery up to 5 years. TECHNICAL DATA Battery Lifecycle up to 5 years Bluetooth 2,4 GHz - Bluetooth Low Energy 4.0/4.2 NFC Supported Dimensions ø 57 mm base - Thickness 18 mm - 2 mounting ø 4 mm holes, spaced of 49 mm Weight 36 g Operating temperature -40°C to +85°C Ingress Protection Rating IP68 (Waterproof) Transmission range Up to 500 meters (open field) Transmission period 0,1 to 10 second (programmable) Regulatory CE (Europe)*: EN 300 328/ EN 301 489 & EN 55032 / EN 62368-1 FCC (USA)*: FCC 15.247 / FCC PT 15B ISED/IC (Canada)*: RSS-247 / ICES-003 RoHS certified

(258-00075)

24
SKU 258-00075
Barcode # BLUE-PUCK-MAG
Brand Teltonika
Assembled Length 55.000m
Assembled Height 14.000m
Assembled Width 0.040m
