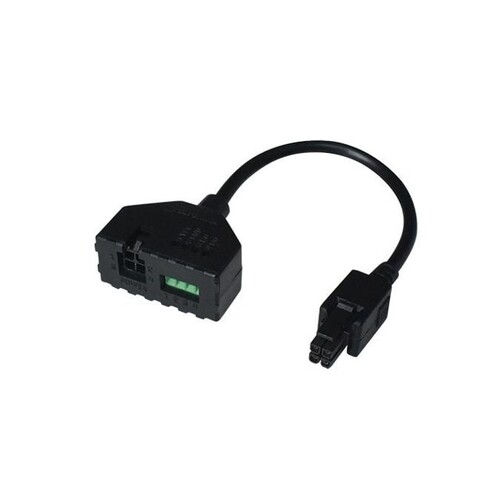

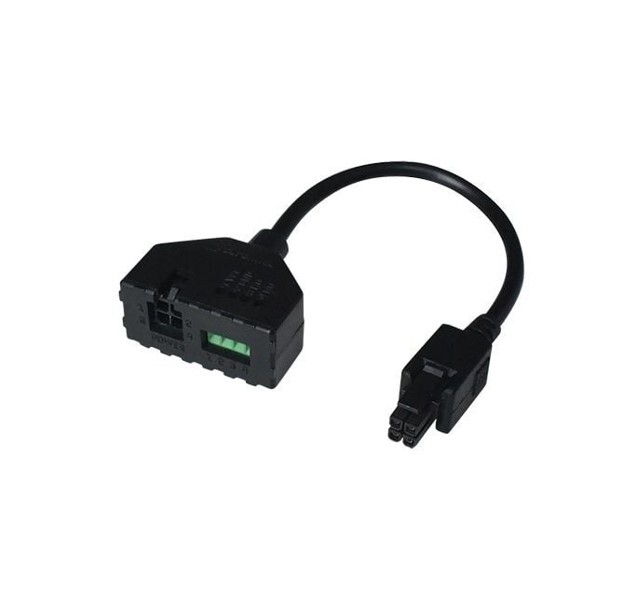

This 4-PIN power connector adapter allows you to easily access I/O functionality for compatible Teltonika Networks devices. It features a standard 4-PIN to 4-PIN power connection with an additional terminal for configurable digital inputs and outputs. TECHNICAL DATA GENERAL Input connector 4-pin, 3 mm pitch and 4-way screw terminal block Output connector 4-pin, 3 mm pitch Cable 4 x 0.20 mm² (24 AWG), 100 mm Screwdriver type Micro slotted Weight 15 g. *CONNECTION DATA Conductor cross section solid / flexible 0.14 - 0.50 mm² (26 - 20 AWG) Conductor cross section flexible, with ferrule, with plastic sleeve 0.25 - 0.30 mm² (23 - 22 AWG) Pinout 1 Pin: Power + 2 Pin: Ground - 3 Pin: Input/Output 4 Pin: Input/Output

(PR5MEC21)

24
SKU PR5MEC21
Barcode # NHT-PR5MEC21
Brand Teltonika
Assembled Length 150.000m
Assembled Height 20.000m
Assembled Width 0.020m
