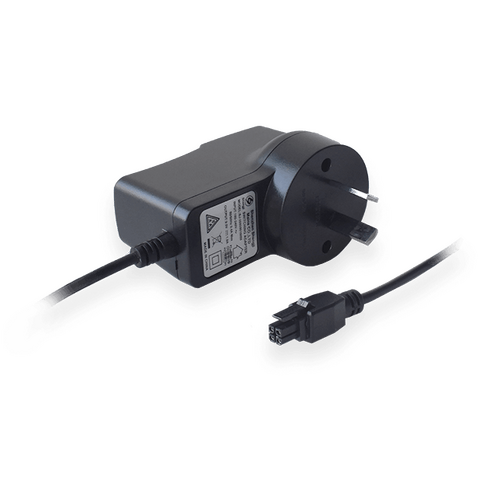

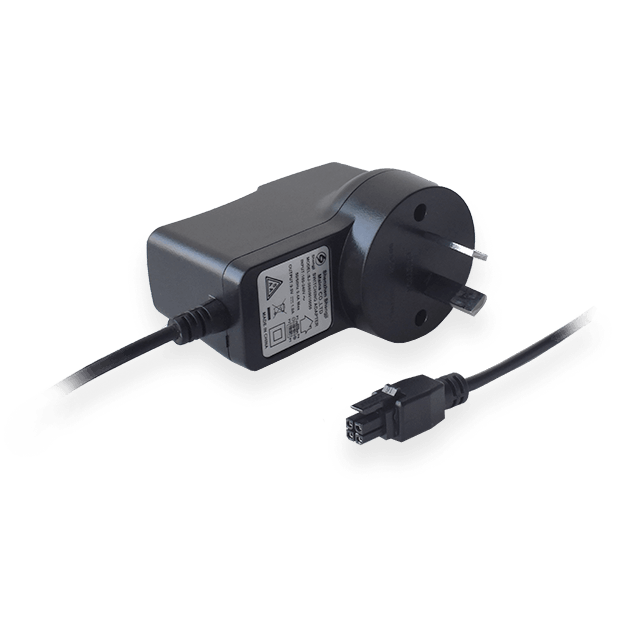

Teltonika 4 Pin Replacement AU Power Supply Parameters Parameter Rated value Absolute maximum Input Voltage 100-240 VAC 90-264 VAC Input Frequency 50/60 Hz 47-63 Hz Input Current (@100-240VAC) 0.4 A - Inrush Current (@100-240VAC) - 40 A Output Voltage 9 VDC 8.55-9.45 VDC Output Current 0-1 A - Overshoot 5 % 10 % Other parameters Short-Circuit protection Input protection Fuse HIPOT (Dielectric Withstand Test) Primary to Secondary: AC3000V MTBF 50000 h Input connector AU Output connector 4pin, 3mm pitch Certification: IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013; AS/NZS CISPR 32: 2015; IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321:2008 Annex C

(PR3PUAU3)

24
SKU PR3PUAU3
Barcode # 035R-00152
Brand Teltonika
Assembled Length 102.000m
Assembled Height 16.000m
Assembled Width 0.100m
