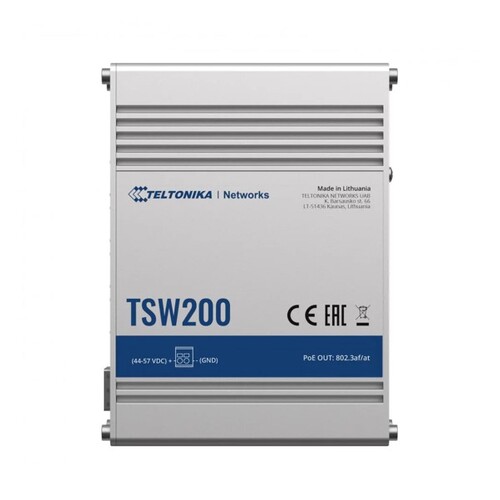

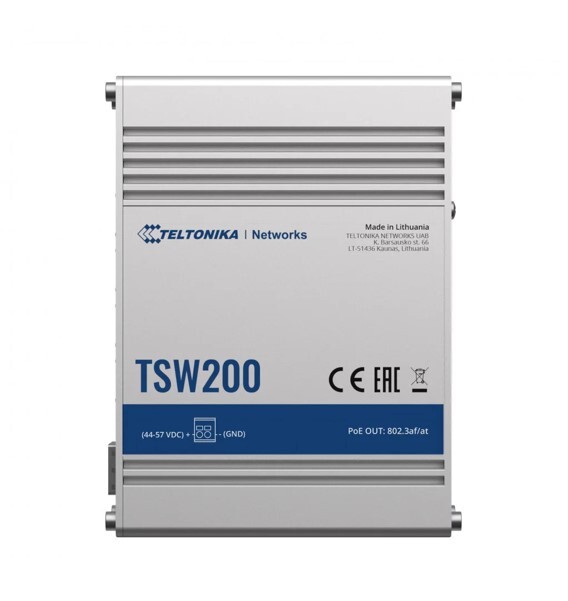

Teltonika TSW200 - Industrial Unmanaged PoE+ Switch

ETHERNET

LAN   8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover Fiber   2 x SFP ports

POE

PoE ports   Port 1 - 8 PoE standards   802.3af and 802.3at PoE Max Power per Port (at PSE)   30 W Total PoE Power Budget (at PSE)   240 W

PERFORMANCE SPECIFICATIONS

Bandwidth (Non-blocking)   20 Gbps Packet buffer   128 KB MAC address table size   2K entries Jumbo frame support   9216 bytes

POWER

Connector   2 pin industrial DC power socket Input voltage range   7-57 VDC Input voltage range for PoE   44-57 VDC Power consumption (idle/max no PoE/max)   1,81 W/5.5 W/245.5 W

PHYSICAL INTERFACES (PORTS, LEDS)

Ethernet   8 x RJ45 ports, 10/100/1000 Mbps Fiber   2 x SFP ports Status LED’s   1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s Power   1 x 2 pin industrial DC power socket Ground   1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material   Full aluminum housing Dimensions (W x H x D)   132 x 44.2 x 95.1 mm Weight   456 g Mounting   DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

Operating temperature   -40 °C to +75 °C Operating humidity   10 % to 90 % non condensing Ingress Protection Rating   IP30

(TSW200)

24
SKU TSW200
Barcode # 4.77905E+12
Brand Teltonika
Assembled Length 50.000m
Assembled Height 80.000m
Assembled Width 0.500m
