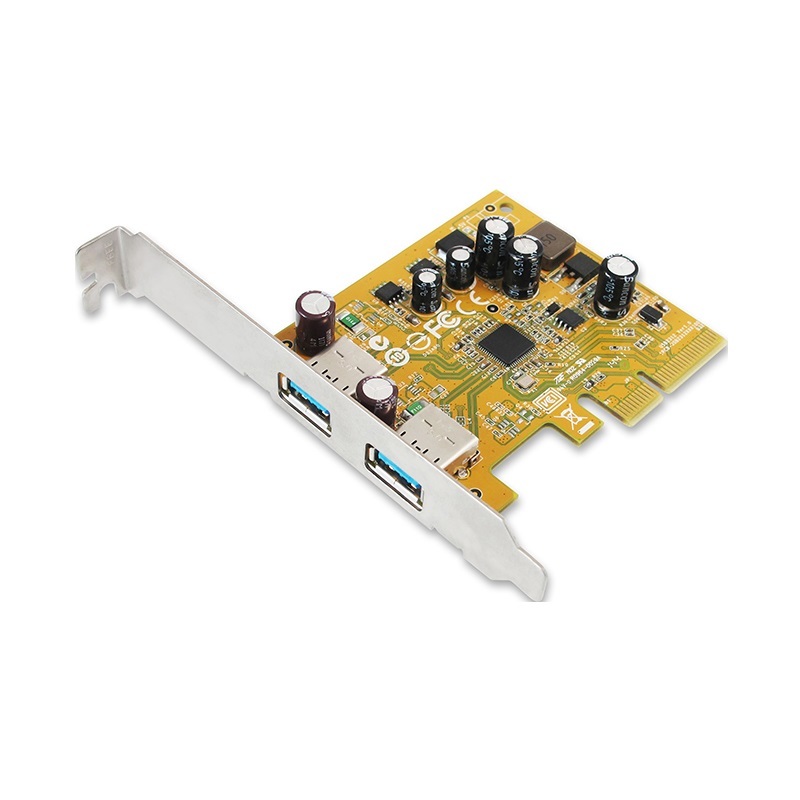

Sunix USB2312 USB 3.1 Enhanced SuperSpeed Dual ports PCI Express Host Card with Type-A Receptacle PCI Express Base Specification Revision 2.0 dual-lane (x2). Compliant with Universal Serial Bus 3.1 specification Gen2. Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1. Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices. Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps. Expands dual external USB 3.1 Super-Speed plus Type-A ports on the system. USB port supplies maximum +5VDC / 900mA power output to USB device. Specifications Hardware BUS PCI Express Spec 2.0, Dual-Lane (x2) Controller PCI Express USB 3.1 Host controller, Asmedia ASM1142 USB Standard eXtensible Host Controller Interface (xHCI) Rev1.1 IRQ & IO Assigned by System USB Communication Interface Universal Serial Bus 3.1 / 3.0 / 2.0 / 1.1 Speed SuperSpeed+(10Gbps), SuperSpeed(5Gbps), High Speed (480Mbps), Full Speed (12Mbps), Low Speed (1.5Mbps) No. of Port 2-port PCB Connector USB 3.1 USB Type-A port Protection ±15KV IEC61000-4-2 Air Gap Discharge ±8KV IEC61000-4-2 Contact Discharge Power Source PCIe Bus Power Output Capacity USB Type-A Port: +5VDC / Maximum 0.9A / each port Note: Total power output capacity will be limited by system power supply. Over Current Protection USB Type-A Port: +6VDC / 1.1A / each port / PTC Fuse Power Consumption 1.1 W @ 3.3V (board only without power output to USB device) Driver Support Windows Windows 7 (X86/X64) Windows 8.x / 10 (X86/X64) (Windows in-box driver) Linux Linux 2.6.31 or later (Linux OS already implemented USB 3.0 driver) Environment Operation Temperature 0 to 60°C (32 to 140°F) Operation Humidity 5 to 95% RH Storage Temperature -20 to 70°C (-4 to 158°F) Regulatory Approvals EMC CE, FCC, VCCI, BSMI Green RoHS, CRoHS, WEEE Physical Characteristics PCB Dimension 79.3 x 68.5 mm Bracket Standard 120 mm (Low Profile 80mm) Bracket Space 1

(USB2312)

12
SKU USB2312
Barcode # 4.71511E+12
Brand Sunix
Assembled Length 174.000m
Assembled Height 44.000m
Assembled Width 0.180m
