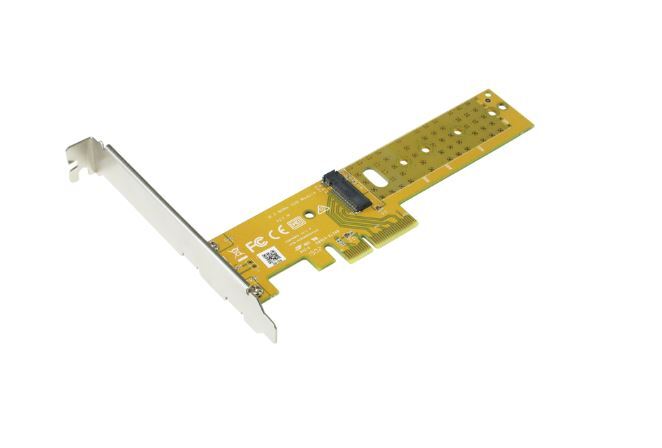

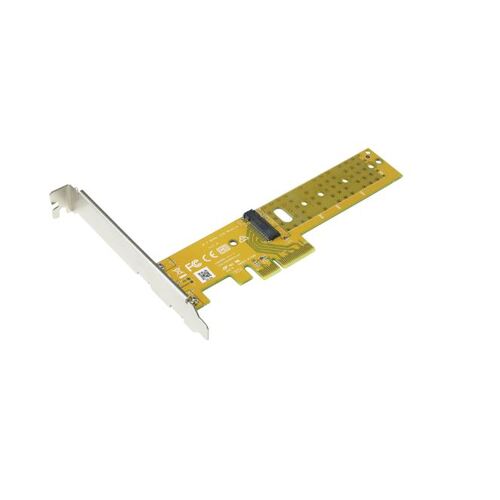

Sunix PCIe x 4 to NVMe M.2 Key-M card P2M04M00, PCIe Gen3 x4, Compliant Full High and Low Profile PCIe Bracket Features: Maximum bandwidth up to PCIe Gen3 x4 specification. Compliant with PCI Express M.2 specification 1.0. Supports M.2 modules in format 2280, 2260, 2242 and 2230 with Key-M or Key-B+M based on PCI Express communication. PCBA layout routing length less than 1.5inch between PCIe and M.2 slot. Compliant Full High and Low Profile PCIe bracket (Optional Accessory). Plug-n-Play, I/O address and IRQ assigned by BIOS. Certified by CE, FCC, VCCI, BSMI, and RoHS approval. Driver free under Windows, Linux, or other operating systems. Specifications Model P2M04M00 Description PCIe x4 to NVMe M.2 Key-M Card M.2 Interface 1 x 67 pin M.2 Key-M slot PCIe Interface PCI Express x4 Ve3.0 Regulatory Approvals CE, FCC, VCCI, BSMI Green Environment RoHS, CRoHS, WEEE Environment Operation temp. 0 °C ~ 40 °C (32-104°F) Operation humidity: < 85% non-condensing Storage temp. -10 °C ~ 85 °C (14~176°F) Weight 40g Dimension 156.1(L)x40.8(W)x1.6(H)mm

(P2M04M00)

12
SKU P2M04M00
Barcode # 4.71511E+12
Brand Sunix
Assembled Length 202.000m
Assembled Height 42.000m
Assembled Width 0.160m
