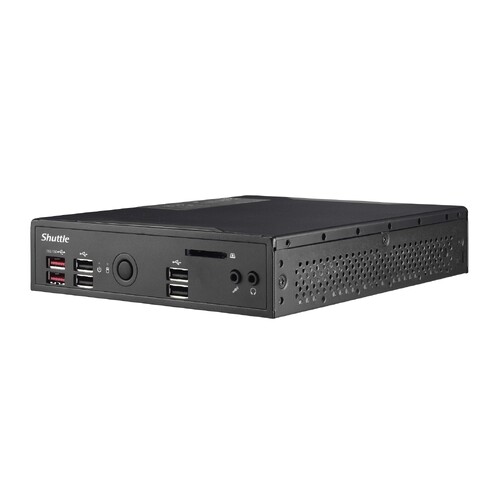

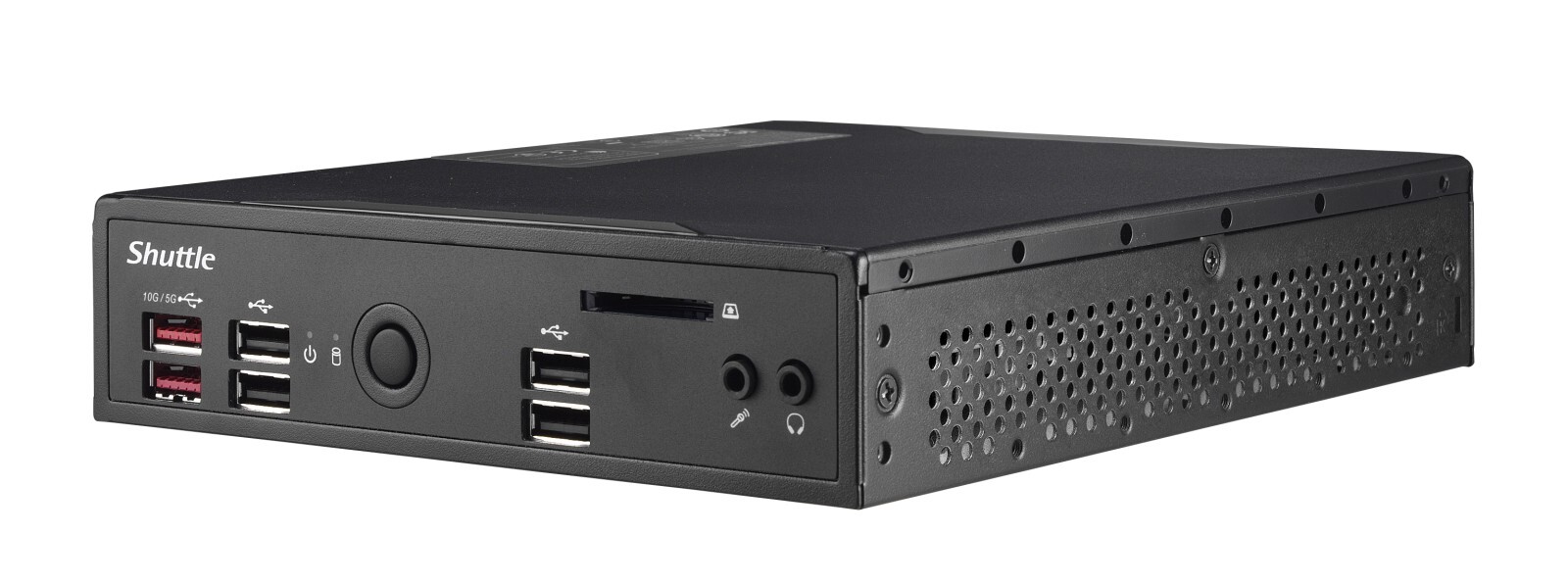

Shuttle DS20U7 Slim Mini PC 1.3L - Intel i7-10510U CPU, Support dual Intel Gigabit LAN, USB 3.0, ,RS232/RS422/RS485/Triple display/Vesa Mount The DS20U series is a fanless, power-efficient PC powered by the 10th gen Intel® Comet Lake-U processor. With a height of only 39 mm, the DS20U supports multi-core performance, up to 64 GB of DDR4, 8x USB, 2x Giga LAN, HDMI, DisplayPort, VGA, COM, space for 1x hard drive and 1x M.2 SSD as well as built-in WiFi AC+BT and 4G LTE kit (optional). Thanks to its passive cooling desig FORM FACTOR Shuttle 1.3L Chassis PROCESSOR Intel i7-10510U MEMORY 2 x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB) Dual Channel DDR4 2400/2666Mhz VIDEO OUTPUT (1)HDMI 2.0a + (1)DisplayPort + (1) VGA video outputs Support triple independent display Integrated in CPU (Intel® UHD Graphics for 10th Gen Intel® Processors) AUDIO Realtek ALC897 2 channel High Definition audio ETHERNET Intel i211 and i219LM 1Gb/s Ethernet connectors Support Wake-On-LAN function Realtek RTL 8821CE 802.11 a/b/g/n/ac WLAN module Support Bluetooth 4.2 STORAGE INTERFACE 6.0Gb/s bandwidth SATA3 ONBOARD CONNECTORS (1) 2.5 inch SATA connector (1) USB2.0 header (1) Auto Power on Jumper (1) RS232 voltage switch (1) External 4 pin header FRONT PANEL (1) Power on button (1) Power LED (1) HDD LED (2) USB 3.1 Gen2 (Celeron 4205U is Gen1) (4) USB 2.0 ports (1) SD Card reader (1) Mic in (1) Headphone out BACK PANEL (2) RJ45 Gigabit LAN (1) HDMI (1) DisplayPort (1) VGA (1) RS232/RS422/RS485 (2) USB 3.1 Gen2 (Celeron 4205U is Gen1) (1) External 4 pin header (Clear CMOS/Power Switch/5V) (1) DC-in (1) Kensington lock (2) Antenna fixture DRIVE BAYS (1) 2.5' HDD / SSD bay DIMENSIONS 200(L) x 165(W) x 39.5(H) mm POWER Input:100- 240V AC Output: 19V/3.42A or 12V/5.42A DC 65W 19V Adapter bundled

(SYS-DS20U7)

36
SKU SYS-DS20U7
Barcode # 8.87993E+11
Brand Shuttle
Assembled Length 258.000m
Assembled Height 246.000m
Assembled Width 2.320m
