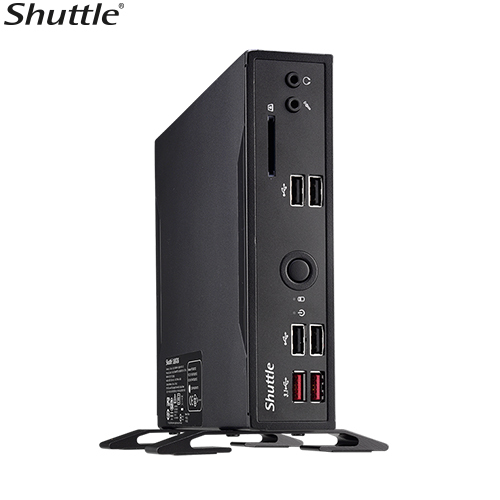

FORM FACTOR Shuttle 1.3L Chassis PROCESSOR Intel i5-8265U MEMORY 2 x 260 pin DDR4 SODIMM slots, 16GB per DIMM (Max 32GB) Dual Channel DDR4 2400/2133Mhz VIDEO OUTPUT (1)HDMI 2.0a + (1)DisplayPort + (1) VGA video outputs Support triple independent display Integrated in CPU (Intel UHD 610/620 Graphics) AUDIO Realtek ALC662 2 channel High Definition audio ETHERNET Intel i211 and i219LM 1Gb/s Ethernet connectors Support Wake-On-LAN function Realtek RTL 8821CE 802.11 a/b/g/n/ac WLAN module Support Bluetooth 4.2 STORAGE INTERFACE 6.0Gb/s bandwidth SATA3 ONBOARD CONNECTORS (1) 2.5 inch SATA connector (1) USB2.0 header (1) Auto Power on Jumper (1) RS232 voltage switch (1) External 4 pin header FRONT PANEL (1) Power on button (1) Power LED (1) HDD LED (2) USB 3.1 Gen2 (Celeron 4205U is Gen1) (4) USB 2.0 ports (1) SD Card reader (1) Mic in (1) Headphone out BACK PANEL (2) RJ45 Gigabit LAN (1) HDMI (1) DisplayPort (1) VGA (1) RS232/RS422/RS485 (2) USB 3.1 Gen2 (Celeron 4205U is Gen1) (1) External 4 pin header (Clear CMOS/Power Switch/5V) (1) DC-in (1) Kensington lock (2) Antenna fixture DRIVE BAYS (1) 2.5' HDD / SSD bay DIMENSIONS 200(L) x 165(W) x 39.5(H) mm POWER Input:100- 240V AC Output: 19V/3.42A or 12V/5.42A DC 65W 19V Adapter bundled

(DS10U5)

36
SKU DS10U5
Barcode # 8.87993E+11
Brand Shuttle
Assembled Length 260.000m
Assembled Height 250.000m
Assembled Width 2.240m
