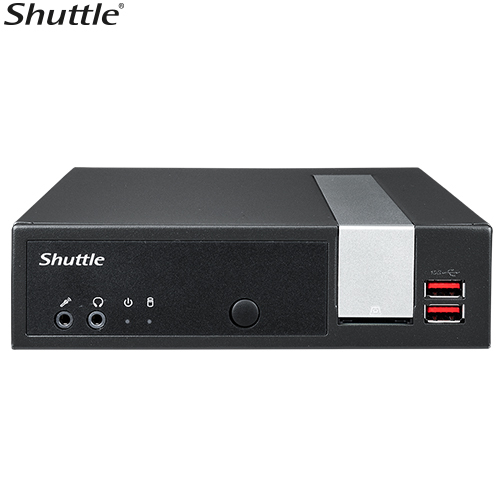

The Shuttle XPC slim Barebone DL20N Series is the successor to Shuttle's DL10J. These fanless Slim PC barebones with an energy-efficient 10 nm Intel 'Jasper Lake' processor are suitable for building particularly slim PC systems with drives and operating system as well as client/server setups for pure network-based applications. The optional Shuttle accessory WWN03 allows for an LTE module to be installed for mobile internet access. The integrated graphics is based on Intel's powerful 11th gen. Intel UHD Graphics that supports hardware acceleration for 4K videos. Combined with an SSD or M.2 drive, these Slim-PCs works virtually noiseless. FORM FACTOR 1.35L slim form factor PROCESSOR Intel® Jasper Lake N4505 Dual Core processor MEMORY 2 x DDR4 SO-DIMM, supports up to 16GB DDR4 2400 MHz Triple Display Support via three video outputs: HDMI 2.0b: max. 4096 × 2160 @ 60 Hz DisplayPort 1.4a: max. 4096 × 2160 @ 60 Hz D-Sub/VGA: max. 1920 × 1200 resolution @ 60 Hz Intel generation HD Graphic engine AUDIO Realtek ALC269 2 channel High Definition Audio ETHERNET Intel i211 Gigabit LAN controller Supports 10/100/1000 Mb/Sec. Support wake ON LAN (WOL) feature 802.11b/g/n WLAN support (1T1R) - OPTIONAL STORAGE INTERFACE SATA for HDD/SSD SD card reader FRONT PANEL (1) Power button (1) Power Led (1) HDD Led (1) SD Card reader (2) USB 3.0 port (1) MIC-IN (1) Audio out BACK PANEL (1) RJ45 Gigabit LAN port (1) Display port (1) HDMI port (4) USB 2.0 ports (1) DC in (1) RS232/RS422/RS485 (1) RS232 (1) VGA (1) External power on/Clear CMOS header (2) Connectors for WLAN antenna DRIVE BAYS (1) 2.5' HDD Max.(9.5mm) / SSD bay DIMENSIONS 190(L) x 165(W) x 43(H) mm POWER Input:100- 240V AC Output: 19V/2.1A or 12V/3.33A DC 40W 19V Adapter bundled ACCESSORIES XPC Multilanguage Quick User Guide XPC DVD Driver VESA screw pack VESA bracket 40W adapter Screw pack External Antenna Power cord EXPANSION SLOT (1) M.2 Type M (2280)

(SYS-DL20N)

36
SKU SYS-DL20N
Barcode # 8.87993E+11
Brand Shuttle
Assembled Length 260.000m
Assembled Height 246.000m
Assembled Width 1.800m
