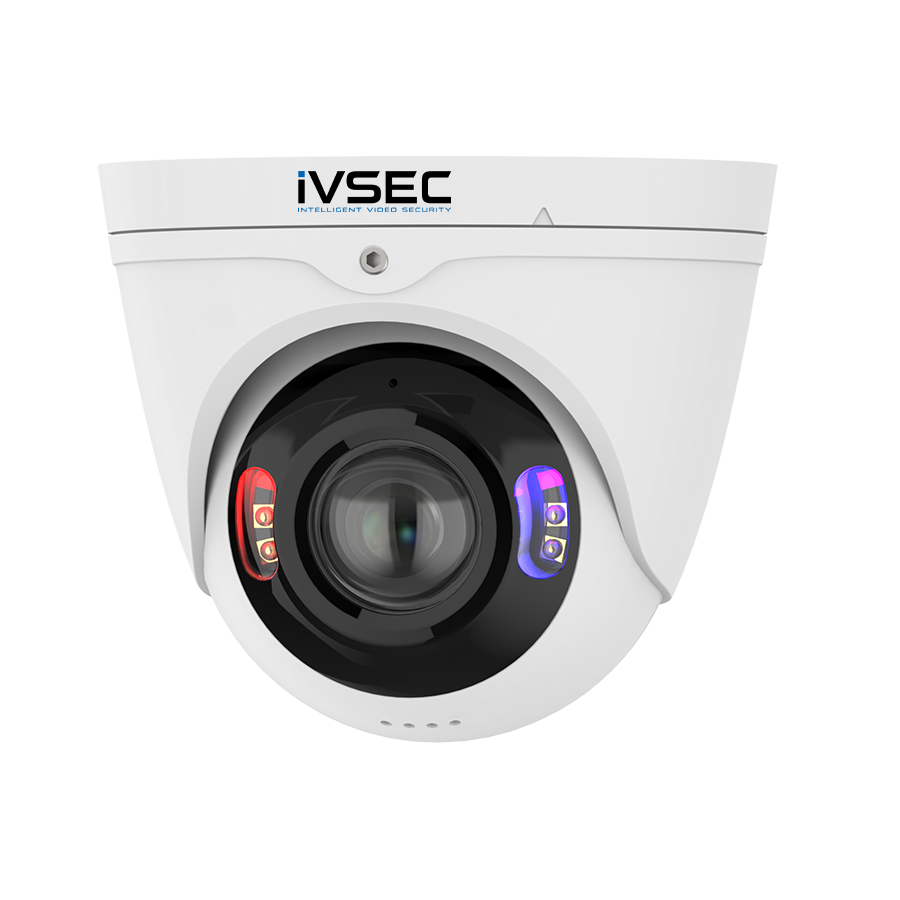

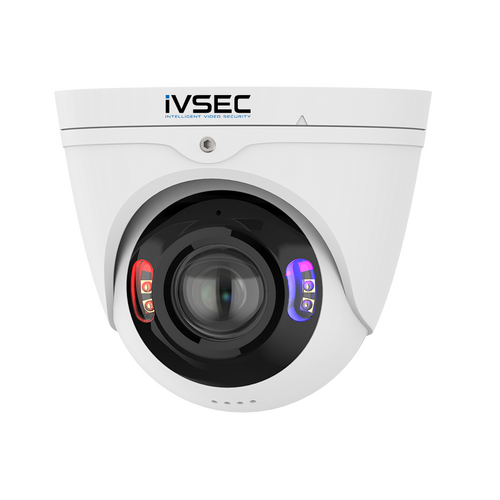

NC543ADX Security Camera
The NC543ADX is a revolutionary turret IP camera designed for high-performance surveillance applications. With an impressive 8-megapixel resolution and a 180° panoramic view it offers unparalleled coverage and clarity ensuring every detail is captured with exceptional precision.
| Camera Type | Panoramic | |||||||||||||
| Image Sensor | 1/2.7″ Progressive CMOS | |||||||||||||
| Maximum Video Resolution Megapixels | 8 | |||||||||||||
| Maximum Video Resolution | 3840 X 2160 | |||||||||||||
| Frames Per Second FPS | 30 | |||||||||||||
| Lens | 2.8mm 180° | |||||||||||||
| Lens Type | Panoramic | |||||||||||||
| Maximum Night IR Distance M | 30 | |||||||||||||
| LED | IR Red & Blue Warm White | |||||||||||||
| Video Compression | H.265 H.265 H.264 H.264 MJPEG | |||||||||||||
| ONVIF depends on firmware version | ONVIF Profile S/G/T | |||||||||||||
| Accessories | IV2422X IV2433X IV2444X IV2455X IV2457X IV2477X | |||||||||||||
| Outdoor Use | Yes | |||||||||||||
| IP Rating | IP67 | |||||||||||||
| Vandal Resistant | Yes IK10 | |||||||||||||
| Day/Night Mode | Day Night Auto Schedule | |||||||||||||
| Image Enhancement | Rotate Saturation Brightness Contrast Sharpness White Balance BLC 3D DNR HLC | |||||||||||||
| Intelligent Video IVS | Motion Detection Face Recogniton Pedestrian & Vehicle Detection Line Crossing Object Detection Cross Counting Heat Map Crowd Density Queue Length License Plate Recognition Intrusion Region Entrance Region Exiting | |||||||||||||
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card | |||||||||||||
| Multiple Streams encode format | 3 Streams | |||||||||||||
| Software | Device Search/Config Tool Surveillance Client CMS/VMS Mobile app QR code | |||||||||||||
| Protocols | TCP/IP HTTP DHCP DNS DDNS RTP/RTSP SMTP NTP UPnP SNMP HTTPS FTP PPPoE | |||||||||||||
| Language | English French Spanish Portuguese German Italian Greek Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean Japanese Thai Hindi Romanian Dutch Polish | |||||||||||||
| Cloud option camera only | Dropbox | |||||||||||||
| Audio Streaming | Yes microphone and speaker included | |||||||||||||
| Ethernet | Ethernet 10/100/1000 Base-T | |||||||||||||
| Power Over Ethernet | Yes | |||||||||||||
| Power Supply | Power over Ethernet IEEE 802.3at DC12V | |||||||||||||
| Power Consumption | < 14W | |||||||||||||
| Connectors | RJ-45 DC Power Input Reset Button | |||||||||||||
| Operating Environment | -30ºC to 60ºC -22ºF-149ºF Humidity ≤90 RH | |||||||||||||
| In The Box | Free Software available from FTP Printed quick user guide Installation template Mounting screws and plugs | |||||||||||||
| Product Dimensions H x W x L mm | 127 x 136 x 136 | |||||||||||||
| Packaging Dimensions H x W x L mm
(IVNC543ADX)
