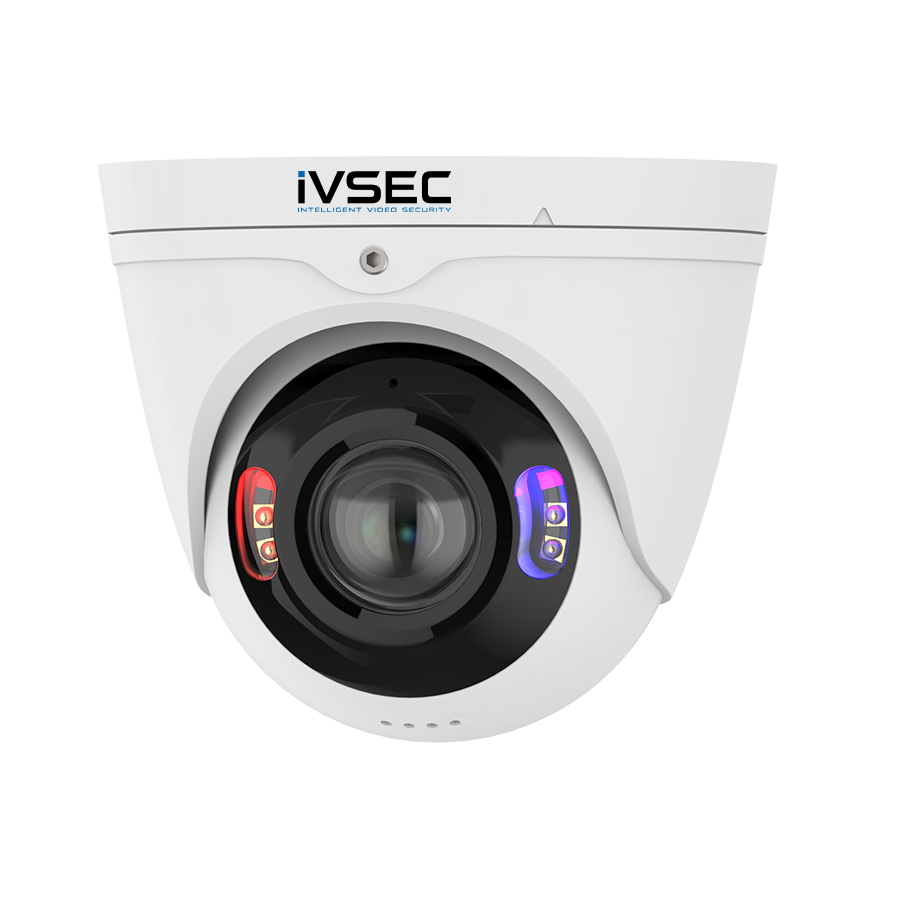

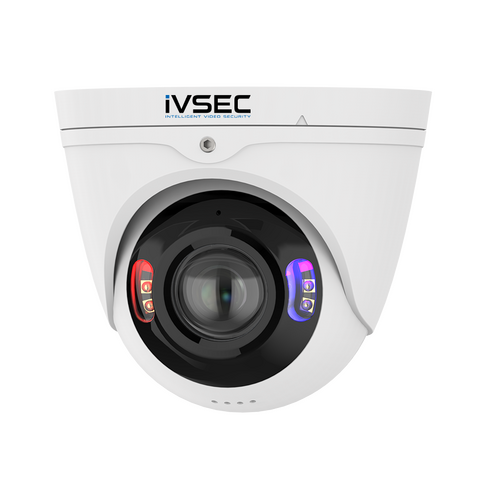

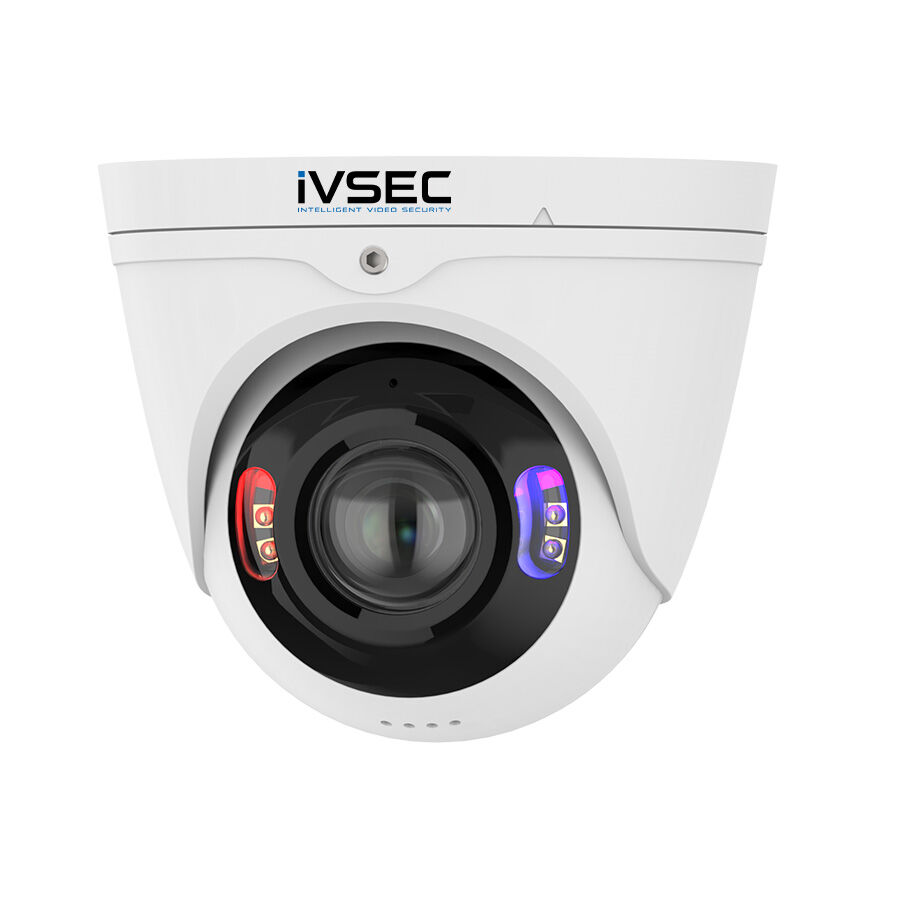

NC543ADX Security Camera
The NC543ADX is a revolutionary turret IP camera designed for high-performance surveillance applications. With an impressive 8-megapixel resolution and a 180° panoramic view it offers unparalleled coverage and clarity ensuring every detail is captured with exceptional precision.
Camera Type | Panoramic | |||||||||||||
Image Sensor | 1/2.7″ Progressive CMOS | |||||||||||||
Maximum Video Resolution Megapixels | 8 | |||||||||||||
Maximum Video Resolution | 3840 X 2160 | |||||||||||||
Frames Per Second FPS | 30 | |||||||||||||
Lens | 2.8mm 180° | |||||||||||||
Lens Type | Panoramic | |||||||||||||
Maximum Night IR Distance M | 30 | |||||||||||||
LED | IR Red & Blue Warm White | |||||||||||||
Video Compression | H.265 H.265 H.264 H.264 MJPEG | |||||||||||||
ONVIF depends on firmware version | ONVIF Profile S/G/T | |||||||||||||
Accessories | IV2422X IV2433X IV2444X IV2455X IV2457X IV2477X | |||||||||||||
Outdoor Use | Yes | |||||||||||||
IP Rating | IP67 | |||||||||||||
Vandal Resistant | Yes IK10 | |||||||||||||
Day/Night Mode | Day Night Auto Schedule | |||||||||||||
Image Enhancement | Rotate Saturation Brightness Contrast Sharpness White Balance BLC 3D DNR HLC | |||||||||||||
Intelligent Video IVS | Motion Detection Face Recogniton Pedestrian & Vehicle Detection Line Crossing Object Detection Cross Counting Heat Map Crowd Density Queue Length License Plate Recognition Intrusion Region Entrance Region Exiting | |||||||||||||
Edge Recording microSD/SDHC Card | Micro SD/SDHC Card | |||||||||||||
Multiple Streams encode format | 3 Streams | |||||||||||||
Software | Device Search/Config Tool Surveillance Client CMS/VMS Mobile app QR code | |||||||||||||
Protocols | TCP/IP HTTP DHCP DNS DDNS RTP/RTSP SMTP NTP UPnP SNMP HTTPS FTP PPPoE | |||||||||||||
Language | English French Spanish Portuguese German Italian Greek Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean Japanese Thai Hindi Romanian Dutch Polish | |||||||||||||
Cloud option camera only | Dropbox | |||||||||||||
Audio Streaming | Yes microphone and speaker included | |||||||||||||
Ethernet | Ethernet 10/100/1000 Base-T | |||||||||||||
Power Over Ethernet | Yes | |||||||||||||
Power Supply | Power over Ethernet IEEE 802.3at DC12V | |||||||||||||
Power Consumption | < 14W | |||||||||||||
Connectors | RJ-45 DC Power Input Reset Button | |||||||||||||
Operating Environment | -30ºC to 60ºC -22ºF-149ºF Humidity ≤90 RH | |||||||||||||
In The Box | Free Software available from FTP Printed quick user guide Installation template Mounting screws and plugs | |||||||||||||
Product Dimensions H x W x L mm | 127 x 136 x 136 | |||||||||||||
Packaging Dimensions H x W x L mm
(NC543ADX)
