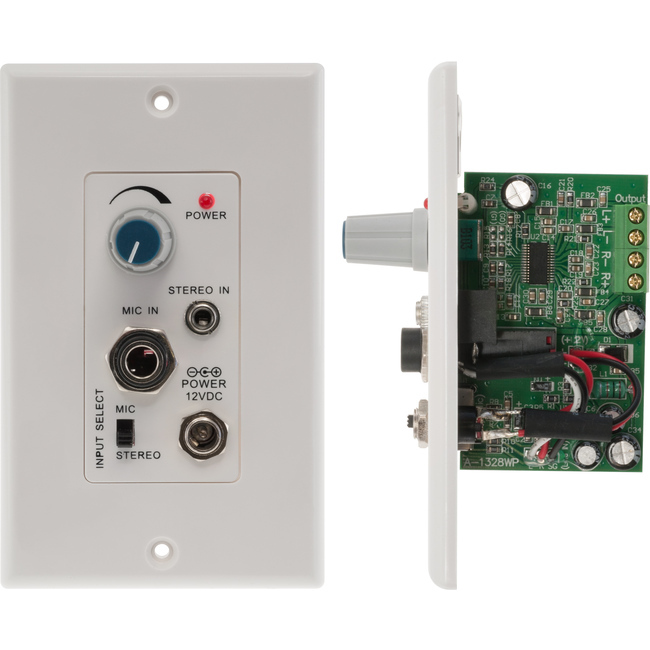

Pro2 PRO 1328WP Stereo Audio Power Amplifier Wall Plate

Use the PRO1328WP to power in-ceiling speakers with the audio output from any source device such as computers DVD players TVs and even Microphones. Alternatively the PRO1328WP is perfect for shop display installations where basic audio amplification and compact size is required.

Ideal For Use With
  • DVD players
  • TVs
  • Indoor/Outdoor Speakers
  • In-ceiling/in-wall Speakers


Key Specifications
  • Switch between 3.5mm line or microphone inputs
  • Discrete and compact Decora-style wall-plate design
  • Speaker screw terminals handle wire sizes from 24 to 12 gauge


General Specifications
  • Inputs Dynamic microphone or stereo audio line level
  • Microphone pre-Amplifier gain 40dB
  • Power Amplifier Type Stereo Class-D
  • Output power 15Wrms per channel RL4 ohm
  • THDN 0.06 RL8 ohm f 1 kHz
  • Minimum Load Resistance 4 ohm
  • Includes Speaker Protection circuit.
  • Power Source 12 VDC / 2A
  • Size LxWxH 92.6mm x 73.4 mm x 26.6mm
  • Net Weight Unit only 160 g


(PRO1328WP)

SKU PRO1328WP
Barcode # 9328202015396
Brand Pro2
Shipping Weight 0.3100kg
Shipping Width 0.120m
Shipping Height 0.080m
Shipping Length 0.180m
