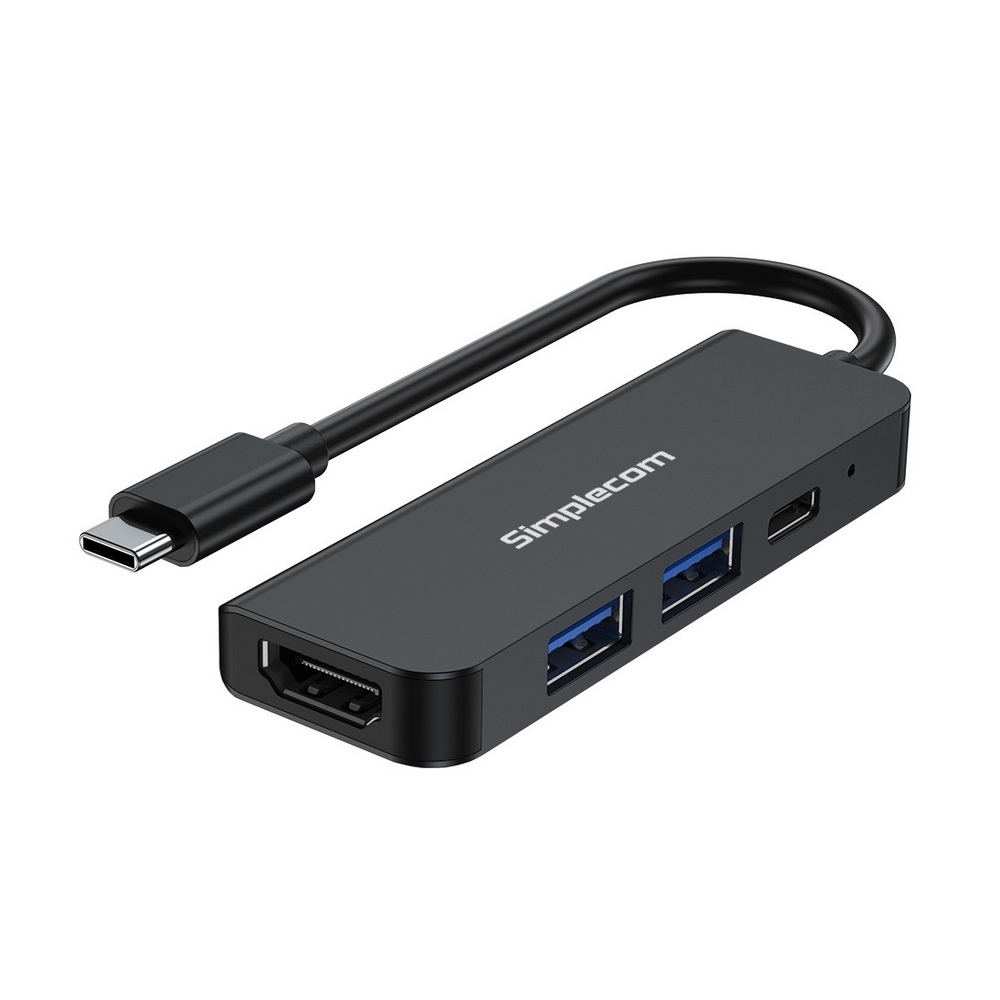

CH540 is a USB-C multiport adapter for modern laptops with multifunctional USB-C interface. It turns a single USB-C port into 4 ports, including two USB-A ports, HDMI Display output, and one USB-C PD charging port. The HDMI port supports transmitting video with resolution up to 4K@30Hz, and the USB hub provides up to 5Gbps transmission speed. It’s an ideal connectivity solution that helps you to increase productivity and convenience.

Ultra-Compact design with aluminium casing, to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work.

Features

  • Convenience of expanding your laptop with this 4-Port USB-C Hub
  • Single USB-C to 2x USB-A, HDMI, and USB-C PD
  • HDMI port supports up to 4K@30Hz resolution in Mirror or Extended mode
  • Two USB-A ports, USB 3.0 and USB 2.0, can be used simultaneously
  • Up to 5Gbps data transfer rate on USB 3.0 port
  • USB-C PD port for charging the laptop with up to 87W of power
  • Durable & stylish aluminium alloy housing
  • Lightweight, easy to carry along when travelling
  • Built-in flexible USB-C Cable
  • Plug & play, no driver software required

Specifications

  • USB Hub: 2x USB-A Female (1x SuperSpeed 5Gbps, 1x HighSpeed 480Mbps)
  • HDMI Output: Support up to 3840 x 2160p at 30 Hz (4K@30Hz)
  • PD Charging: USB-C Female (for charging only), up to 87W
  • Operation Temperature: 0 - 45°C
  • Dimensions: 83 x 28 x 11 (mm)
  • Cable Length: 10cm
  • Weight: 30g
  • Housing: Aluminium

System Requirements

  • Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
  • Operating system: Windows 7 or above, MacOS 10.7.1 or above, Android

(CH540)

12
SKU CH540
Barcode # 9.35041E+12
Brand Simplecom
Assembled Length 74.000m
Assembled Height 14.000m
Assembled Width 0.040m
