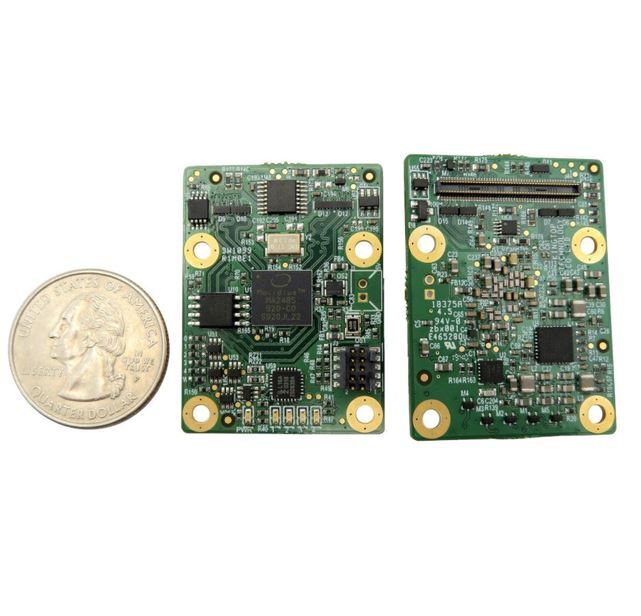

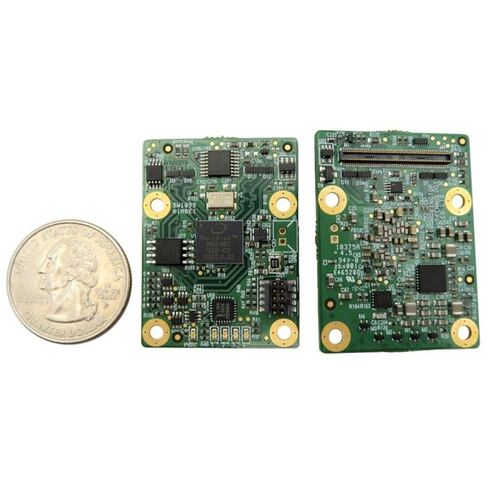

The OAK-SoM-IoT is an embedded variant of the OAK-SoM that includes a 128MB NOR flash, and boot-switch capabilities such that it can be booted over USB or set to boot out of NOR-flash, for communication with microcontrollers over SPI. The key difference between OAK-SoM-IoT and the standard OAK-SoM is that the latter requires a host processor, running Linux, Mac, or Windows to operate, whereas this module can boot out of NOR flash - allowing SPI communication with microcontrollers which may be running no operating system at all (bare metal C or C++ code). This module is included pre-mounted on the OAK-D-IOT-40, which is our embedded DepthAI reference design. Features • All connectivity through single 100-pin connector (DF40C-100DP-0.4V(51)) • 2x 2-lane MIPI Camera Interface • 1x 4-lane MIPI Camera Interface • Quad SPI with 2 dedicated chip-selects • I²C • UART • USB2 • USB3 • Several GPIO (1.8 V and 3.3 V) • Supports off-board eMMC or SD Card • On-board NOR boot Flash (optional) • On-board EEPROM (optional) • All power regulation, clock generation, etc. on module'

(A00496)

36
SKU A00496
Barcode # AIL-OAK-SOM-IOT-25PC
Brand Luxonis
Assembled Length 20.000m
Assembled Height 20.000m
Assembled Width 0.500m
