AK-ACR-CID13

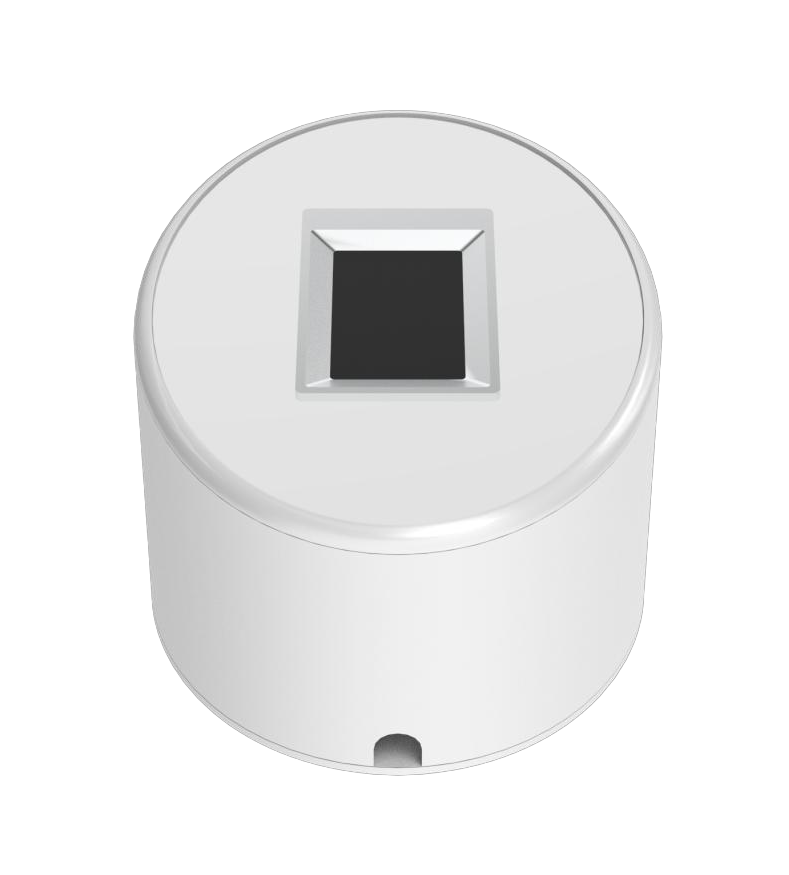

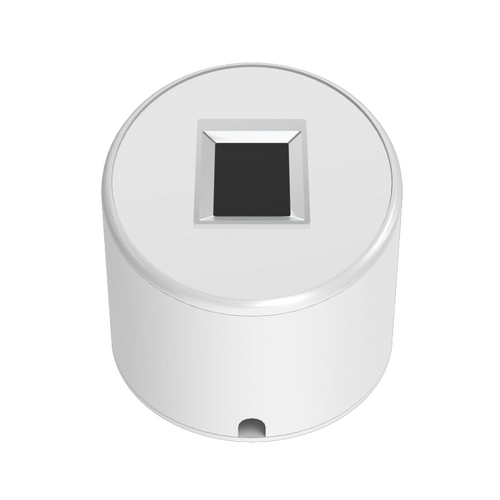

Akuvoxs ACR-CID13 is a semiconductor desktop fingerprint capture device. It offers high reliability strong adaptability to dry and wet fingers and fast fingerprint recognition speed. The device is capable of fingerprint image capture image processing and feature extraction featuring a compact size novel design low power consumption and simple interfaces.

Product Specifications

Communication Interface

USB 2.0

Operating Voltage

DC 5.0 ± 0.5 V

Maximum Current

<60mA VDD excluding the indicator light module

Indicator Light

Red/Green

Image Resolution

256 × 360 pixels

Fingerprint Image Capture Time

≤0.25s

Image Distortion Calibration

≤2

Effective Fingerprint Detection Area

12.8mm × 18mm

Connection Requirements

  • Windows USB 2.0 Port.

  • No requirements for installing drivers.

After connecting to a computer its green indicator light remains on.

Fingerprint Enrollment Requirements

  • Place the fleshy part of your finger in the middle of the reader to ensure accurate fingerprint capture and recognition.

  • Apply light and even pressure on the reader. Pressing too hard may make the fingerprint image dark or blurred.

  • Keep your finger still during the enrollment.

Configuration

(ACR-CID13)

SKU ACR-CID13
Barcode # P2392432511110046
Brand Akuvox
