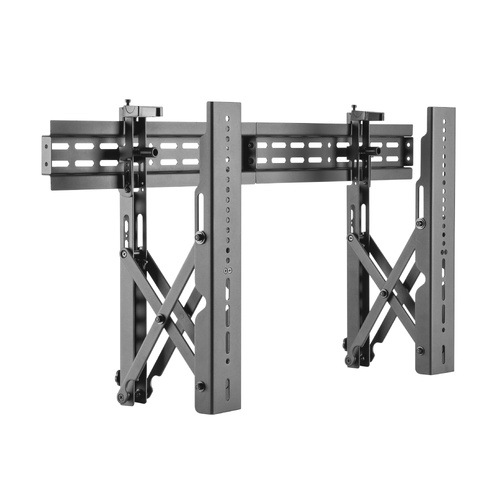

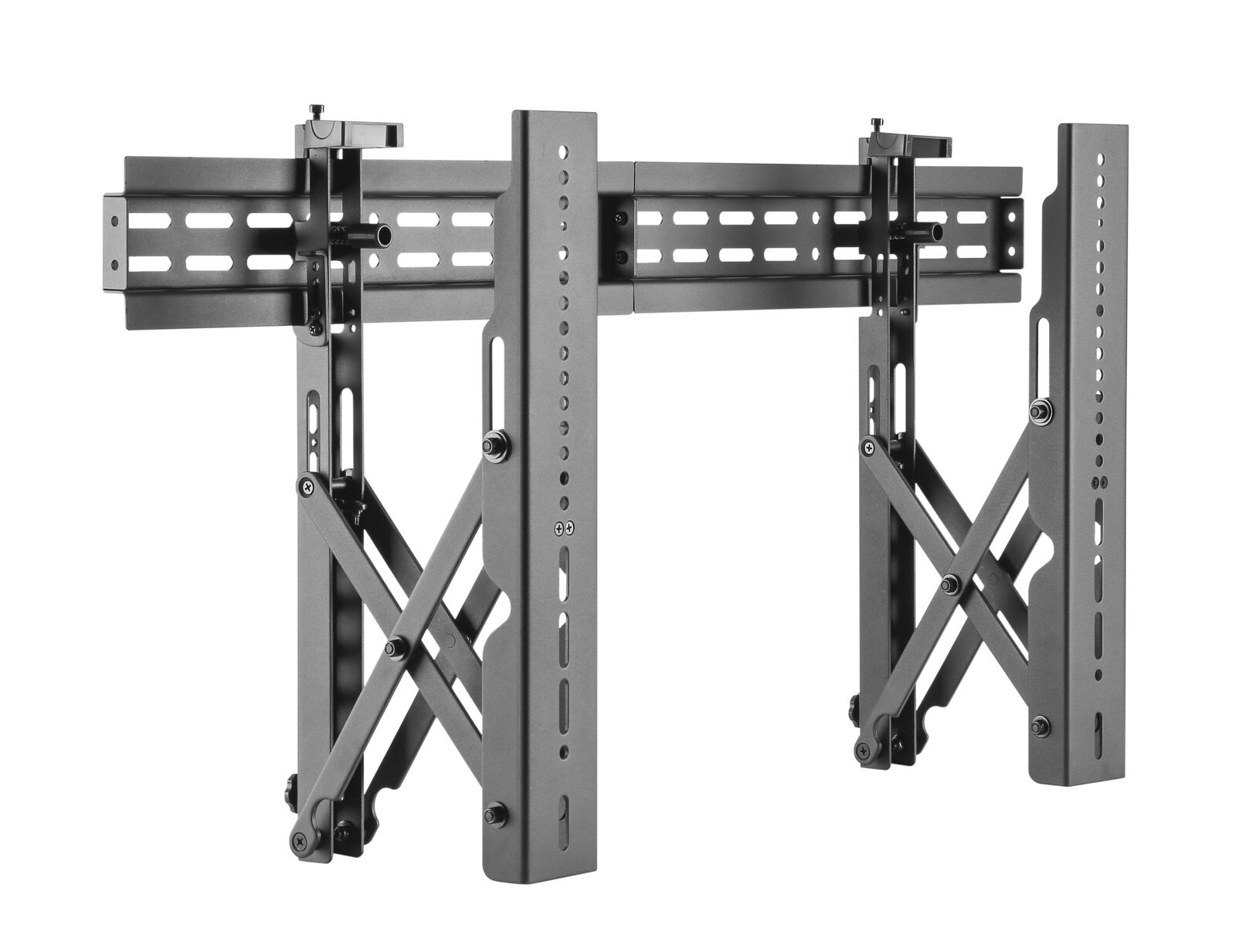

Arkin pop out professional video wall mount is designed to offer the ultimate in versatility and universal compatibility with a load capacity of 45kg max. VESA 800x400 hole pattern.

This mount extends out 202mm from wall by a press with pop-out function and places 60mm to wall when retracted with quick lock mechanism.

Lateral shift brackets and built-in screen level adjustment for seamless display alignment and level.

It is the perfect solution for public and commercial displays with anti-theft design require for a padlock.

  • Pop-Out Extension provides quick access for installation and maintenance
  • Built-In Level Adjustment ensures perfect positioning
  • Anti-Theft Locking Hole for additional security preventing any unwanted removal extra padlock required
  • Lateral Shift Brackets enable width adjustment and fast alignment
  • Pop-Out Lock System ensures safety by reducing the possibility of accidental pop-outs

Specifications
Product Category Video Wall Mount
Material Steel
Metal Sheet Thickness
  • Cold rolled steel
    • Wall plate 2mm
    • Bracket arm 2.5mm
Surface Finish Powder Coating
Colour Fine Texture Black
Dimensions 900 x 465 x 215mm
Fit Screen Size 37 to 70
VESA Compatible
200x200 300x300 400x200
400x400 600x400 800x400
Max. Mounting Hole 800x400
Weight Capacity Per Screen 45kg
Screen Qty 1
Profile 68215mm 2.78.5
Screen Level 3°-3°
Installation Solid Wall
Cable Management No
Anti-theft Yes

(AR-3770-45-VWALL)

SKU AR-3770-45-VWALL
Barcode # AR-3770-45-VWALL
Brand Arkin
Shipping Weight 7.8340kg
Shipping Width 0.105m
Shipping Height 0.115m
Shipping Length 0.985m
